Timing Chain Marks and Postions 2007 Cadillac SRX 4x4 4.6L
I am installing the timing chain and I need the timing marks and timing postions with the correct tools to fix my 2007 Cadillac motor.
Comentarios1
Hi there, this is the timing

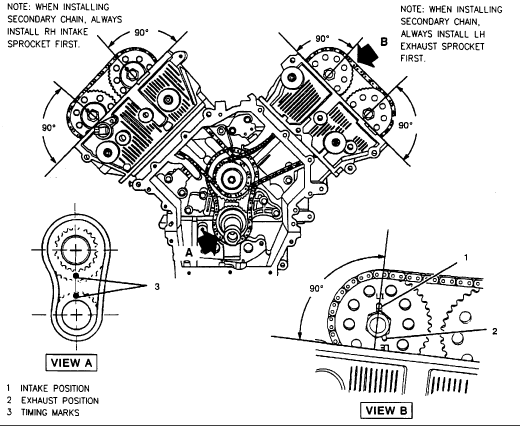

Hi there, this is the timing chain diagram for a 4.6L Cadillac engine. Hope it helps.
